Understanding the Parts of a Trailer Hitch

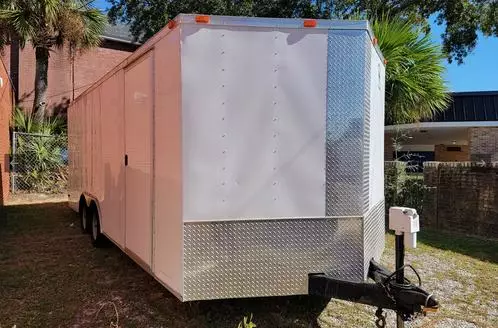

A trailer hitch is not one part, it is a system. Each component has a specific job, and the wrong size or the wrong class in any one piece can turn a routine tow into a safety issue. This guide walks through the full hitch assembly on an enclosed trailer rental: the receiver, the ball mount, the coupler, safety chains, pins, and the electrical connection. Understanding each part helps you spec the right hardware for your tow vehicle and your cargo weight.

Hitch Receiver: The Foundation

The hitch receiver is the square tube bolted to the rear frame of your tow vehicle. The size of the opening defines the class of hitch and determines which ball mounts and accessories fit. Receivers come in five classes, rated by towing capacity and opening size.

Hitch Class Reference

Hitch Class	Receiver Size	Max Gross Trailer Weight	Max Tongue Weight	Typical Vehicle
Class I	1-1/4"	2,000 lbs	200 lbs	Compact car, sedan
Class II	1-1/4"	3,500 lbs	350 lbs	Midsize SUV, crossover
Class III	2"	8,000 lbs	800 lbs	Full-size SUV, light truck
Class IV	2"	10,000 lbs	1,000 lbs	Full-size pickup
Class V	2-1/2" or 3"	20,000+ lbs	2,700+ lbs	Heavy-duty pickup, commercial

Match your enclosed trailer rental to a receiver rated for at least the trailer's gross vehicle weight rating (GVWR) loaded. Do not rely on the dry weight of the trailer; calculate the loaded weight.

Ball Mount and Hitch Ball

The ball mount slides into the receiver and supports the hitch ball. Ball mounts come in fixed-drop or adjustable designs, and the correct rise or drop keeps the trailer level with the tow vehicle. A level trailer tracks straight; one that is nose-up or nose-down puts uneven load on the axle and causes sway.

Common Hitch Ball Sizes

The three standard hitch ball sizes are 1-7/8 inch, 2 inch, and 2-5/16 inch. Most enclosed trailer rentals use a 2 inch ball for tandem-axle rentals under 7,000 pounds, and 2-5/16 inch for heavier dual-axle units. The ball size stamped on the trailer coupler must match the ball exactly, or the coupler will not latch securely.

Coupler: The Trailer Side

The coupler is the socket at the front of the trailer tongue that drops over the hitch ball. It includes a latch mechanism and a locking pin. Inspect the coupler for rust, cracks, or worn latch components before every tow. A coupler that looks latched but has a worn internal jaw can release under road vibration.

Coupler Locking Pin

After the coupler is seated on the ball and the latch is closed, insert the locking pin through the hole in the latch. This pin prevents the latch from lifting due to bumps or a hard stop. Do not skip it; a missing pin is one of the most common causes of trailer separation on the highway.

Bar chart of maximum gross trailer weight by hitch class

NeighborsTrailer.com

Safety Chains

Every trailer must have two safety chains that connect the trailer to the tow vehicle frame. Cross the chains under the tongue in an X pattern so that, if the coupler ever separates from the ball, the tongue drops into the cradle of the chains instead of onto the pavement. Each chain should have slack to allow full turning without binding, but not so much that it drags on the ground.

Breakaway Cable

On trailers with electric brakes, a breakaway cable runs from a battery-powered switch on the trailer to a fixed anchor point on the tow vehicle. If the trailer separates, the cable yanks the switch and activates the trailer brakes automatically. Connect the breakaway cable to a structural point on the frame or hitch, never to the ball mount or a chain link.

Electrical Connector

The wiring plug links the tow vehicle taillights, brake lights, and turn signals to the trailer. Enclosed trailer rentals typically use 4-pin or 7-pin connectors. 4-pin handles basic lighting. 7-pin adds brake controller output, reverse lights, and a 12V power lead for interior lighting or onboard battery charging.

Weight Distribution Hitches

For heavier enclosed trailers or when the tow vehicle sags noticeably after hookup, a weight distribution hitch transfers some of the tongue weight onto the front axle of the tow vehicle. This restores steering response, improves braking, and allows safer towing near the vehicle's maximum capacity.

Pre-Tow Hitch Inspection

Before every trip, walk around the hitch and check each component. Receiver bolts tight, ball mount pin installed, ball torque correct, coupler latched and pin inserted, chains crossed and connected, breakaway cable hooked to a structural point, electrical plug fully seated and lights working. A 90-second walkaround catches most hitch failures before they happen.

Frequently Asked Questions

What hitch class do I need for an enclosed trailer rental?

Most enclosed trailer rentals require a Class III or IV hitch. Check the loaded weight of the trailer and match it to a class that exceeds that weight with margin to spare.

Can I use a 2 inch ball with a 2-5/16 coupler?

Never. The coupler will not latch securely and can release under load. The ball size and coupler size must match exactly.

How tight should safety chains be?

Tight enough that they do not drag on the road, loose enough to allow sharp turns without binding. When crossed under the tongue, they should form a cradle that catches the tongue if the coupler fails.

Do I need a weight distribution hitch for every enclosed trailer?

Not always, but use one if the tow vehicle sags more than a couple inches after hookup or if the loaded trailer weight is above 50 percent of the tow vehicle's towing capacity.

What is the breakaway cable for?

If the trailer separates from the hitch, the cable triggers the trailer's electric brakes to bring it safely to a stop instead of rolling freely into traffic.

Conclusion

A properly matched hitch system is the single most important element of safe towing. Confirm the class, size the ball correctly, latch and pin the coupler, cross the chains, and test the wiring before every trip. Done every time, this routine takes less than two minutes and prevents the most common causes of trailer accidents.
