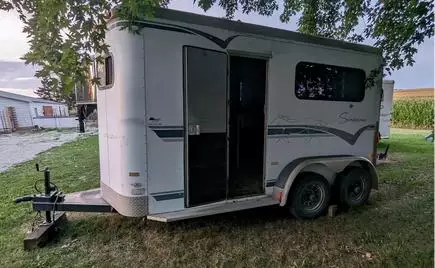

Learn How to Wire a 7-Way Trailer Plug on Your Horse Trailer

A 7-way trailer plug is the electrical backbone of every horse trailer with electric brakes. It carries running lights, turn signals, brake signal, backup lights, ground, and constant 12 volt auxiliary power on a single connector. Wire it correctly and your trailer will run for a decade. Wire it badly and you'll spend Saturdays chasing intermittent brake faults that scare the horses and ruin a haul. This guide walks through the standard 7-way RV-blade pin map, the right wire gauges, the install procedure, and the troubleshooting steps that resolve 90 percent of wiring problems before you call a shop.

Why the 7-Way Connector Is the Right Choice for Horse Trailers

Horse trailers are heavy, often carry living quarters, and almost always require electric brakes. A 4-pin flat connector (running lights and turn signals only) is not enough. A 5-pin and a 6-pin add a brake signal but skip the constant 12 volt and the backup light circuit. Only the 7-way RV-blade plug carries every signal a modern horse trailer needs: brakes, backup lights for safer trailer parking, and constant 12 volt for interior dome lights, fans, and battery charging.

Two physical formats exist: the round 7-pin (less common, mostly older heavy-duty trucks) and the rectangular RV-blade 7-way (now the universal standard on US tow vehicles). This guide focuses on the RV-blade version because it's what every horse trailer made after 2005 uses out of the factory.

The Standard 7-Way Pin Map

The seven blades inside the connector each carry a specific signal. The pin map is industry-standard, but wire colors vary slightly by manufacturer. Always confirm with a multimeter before splicing. The reference table below shows the standard pin assignments, function, and the wire gauge most installers use for a 20 to 30 foot horse trailer run.

Why Wire Gauge Matters

Voltage drop is the silent killer of horse trailer electrical systems. A 30 foot run of undersized wire can drop 1 to 2 volts before the signal reaches the trailer, which makes brakes feel weak, lights look dim, and battery chargers fail to top off the trailer battery. The chart below shows the recommended AWG (American Wire Gauge) for each pin on a typical horse trailer. Note the brake and ground wires are intentionally heavier than the lighting wires because they carry the highest current. For more detail on brake circuit performance, our brake controller setup guide covers gain tuning and amperage limits.

NeighborsTrailer.com

Tools and Materials

You'll need a 7-way RV-blade plug (Pollak or Hopkins are the standards), a wire stripper, a crimping tool, heat-shrink butt connectors (never use plain crimp connectors on a trailer), a small flathead screwdriver, a multimeter, a heat gun, and the right gauge stranded wire in each color. Buy stranded automotive wire, not solid or building wire; stranded survives the constant flex of trailer travel.

Step-by-Step Installation

Step 1: Plan the Route

Run the wire bundle from the trailer's coupler back along the inside of the A-frame, through any factory grommets in the front wall, and back along the underside or interior wall to the rear of the trailer. Avoid hot exhaust paths and sharp edges. Use rubber grommets every time the wire passes through a metal panel.

Step 2: Prepare the Plug

Unscrew the cover on the back of the 7-way plug. You'll see seven labeled terminals or screw posts. Lay the corresponding wires against each post and mark each with masking tape if the colors don't match the standard chart above. Always verify with a multimeter on the tow vehicle's wiring first; never assume colors.

Step 3: Strip and Crimp

Strip 3/8 inch of insulation off each wire. Slide a heat-shrink butt connector over the wire, then crimp. Each connection that gets exposed to road spray must end up sealed with heat-shrink tubing, not electrical tape. Tape fails within a season; heat-shrink seals for a decade.

Step 4: Attach to the Plug

Either screw each wire into its terminal post or crimp a spade lug onto each wire and slide it onto the matching plug terminal. Tighten every screw, then tug each wire to confirm it's seated. Loose terminals cause intermittent faults that get blamed on the brake controller.

Step 5: Test Before Closing

Plug into the tow vehicle and check every function with the multimeter at the trailer end of the harness: tail lights on, left turn flashing, right turn flashing, brake pedal pressed (should energize both brake circuits), brake controller manual lever pulled (should energize the blue brake wire), reverse engaged (should energize purple), and battery voltage on the black 12V wire with the engine running.

Step 6: Heat-Shrink and Close the Plug

Slide each butt connector's heat-shrink sleeve to center over the joint and apply heat with a heat gun until the sleeve seals tight. Replace the plug cover, route the harness, and zip-tie at no more than 12 inch intervals to prevent vibration wear.

Common Mistakes and Troubleshooting

The single most common mistake is undersizing the ground wire. Pin 1 carries the return current for every other pin on the connector, so it actually carries the highest cumulative load. Use 8 AWG for any trailer over 20 feet. The second most common mistake is using crimp connectors without heat-shrink in a road-spray environment; salt and water enter the joint, corrode the copper, and within one winter you'll have dim lights or weak brakes. If only one circuit is misbehaving, suspect the wire splice for that color first; if multiple circuits are weak, suspect the ground. For 5-pin trailers, our 5-way wiring overview covers the simpler analog.

Frequently Asked Questions

Can I use a 7-way plug if my tow vehicle only has a 4-pin connector?

Yes, with a 4-pin to 7-way adapter. The four lighting circuits will work normally, but brakes, backup, and auxiliary 12V will not be active unless you also install those circuits on the tow vehicle.

Do I need to fuse the 12V auxiliary wire?

Yes, always. Add an inline fuse (typically 20 to 30 amps) at the tow vehicle's battery within 18 inches of the positive terminal. Without a fuse, a chafed wire can short directly across the battery and start a fire.

What's the difference between RV-blade and round 7-pin?

RV-blade is the modern flat blade design used on virtually all US tow vehicles since the mid-2000s. Round 7-pin is the older heavy-duty truck style still seen on some semi-tractor setups. The pin functions are the same; only the physical connector differs.

How often should I inspect the plug?

Every haul before leaving home. Look for corrosion on the blades, bent pins, or moisture in the housing. A 30-second visual check catches 90 percent of intermittent faults.

Final Thoughts

A 7-way trailer plug is straightforward to wire, but the difference between a 10-year install and a 1-year install lives in the details: heavy enough wire gauge, heat-shrink butt connectors at every joint, a clean route away from heat and sharp edges, and a real test sequence before you button the plug back up. Take an extra hour during the install, save yourself dozens of roadside hours later. Always carry a spare plug and a fuse kit on long horse trailer trips.
