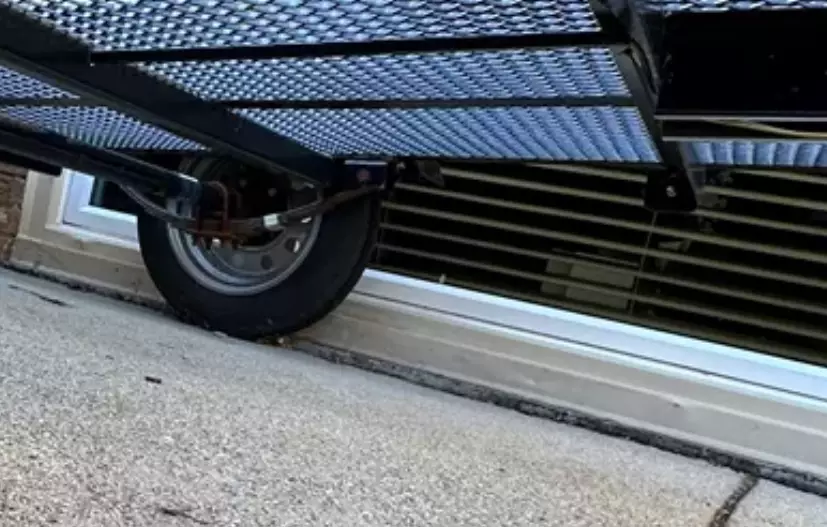

5 Signs You Must Replace Your Trailer's Leaf Springs

Leaf springs do not fail suddenly without warning. They send signals long before they break, and recognizing those signals early can save you from a roadside breakdown, a ruined load, or a dangerous loss of control on the highway. This guide covers the clear, actionable signs that your trailer's leaf springs are due for replacement, along with what causes premature wear and how to extend spring life.

Why Leaf Spring Condition Matters So Much

Your trailer's leaf springs carry every pound of cargo you load, absorb every pothole and rough road surface, and keep your axles aligned with the direction of travel. When a spring fails, the axle can shift out of position, causing severe tire wear on one side, trailer sway at speed, and in a worst case, axle separation. Spring failure mid-trip can strand you, damage your cargo, and create a serious road hazard for other drivers.

Catching wear early keeps you out of that situation entirely. For context on how the full suspension system works together, our enclosed trailer suspension guide explains the relationship between springs, axles, and frame in detail.

7 Clear Signs Your Trailer Leaf Springs Need Replacing

1. The Trailer Sits Lower on One Side

If you notice your loaded or even empty trailer leaning to one side, compare the ride height on both sides. Hook a tape measure from the bottom of the trailer frame to the ground on each side. A difference of more than half an inch indicates that one spring has lost arc height from fatigue or has a broken leaf. This is the most visible and definitive sign of spring failure.

2. Visible Cracks, Breaks, or Separated Leaves

With the trailer parked on level ground, walk along each side and visually inspect the spring packs. A cracked or broken leaf will often show a gap between leaves, a visible fracture line, or in severe cases, a leaf hanging down. Any broken leaf means the spring is compromised and must be replaced before the next trip. Do not attempt a temporary fix; a broken spring under load can shift the axle catastrophically.

3. Excessive Bouncing on Smooth Roads

A trailer that bounces excessively even on good pavement has lost suspension damping. This happens when the spring steel has fatigued and lost its spring rate. The spring still flexes but no longer has the resistance to control the axle's movement. This creates a bouncing, pitching motion that can cause cargo shifting, coupler stress, and loss of directional stability at highway speeds.

4. Unusual Tire Wear Patterns

Inspect your trailer tires regularly. Wear concentrated on the inner or outer edge of one tire, particularly on one side of the trailer, strongly suggests axle misalignment caused by a spring problem. The axle is no longer perpendicular to the trailer centerline, so the tires are running at a slight angle and scrubbing the tread off unevenly. For more detail on interpreting wear patterns and their relationship to alignment, see our guide on trailer axle alignment.

5. Metallic Clunking or Scraping Sounds

A healthy leaf spring flexes quietly. Clunking sounds when you go over bumps typically indicate loose or broken spring components. A deep scraping noise often means a broken leaf is contacting the axle housing, spring hanger, or trailer frame. Both sounds warrant immediate inspection before the trailer is used again.

6. Trailer Sway or Fishtailing

If your trailer develops a tendency to sway side to side while towing, especially at highway speeds, compromised springs may be contributing. Springs keep the axle in its proper orientation relative to the frame. A fatigued or uneven spring pack on one side allows the axle to shift, changing the trailer's dynamic balance and making it susceptible to sway. Note that sway can have multiple causes; spring condition is one element to investigate alongside tongue weight and load distribution.

7. The Spring Arc Has Flattened

A leaf spring in good condition has a visible upward curve (camber) when viewed from the side. This arc is what gives the spring its load-carrying capacity. Over time, repeated flexing under load permanently deforms the steel, reducing or eliminating the arc. A flat or inverted spring still looks intact but has lost a significant portion of its load rating. To check, measure the arch height on both sides: the distance from the top of the main leaf to an imaginary straight line between the mounting points.

Trailer Spring Inspection Quick Reference

What Causes Leaf Springs to Fail Prematurely

NeighborsTrailer.com

Overloading is the single biggest contributor to early spring failure. Every time a loaded trailer exceeds the rated capacity, the springs are pushed past their design limits. Even occasional overloading creates micro-fractures that accumulate over time. Corrosion is the next biggest factor, particularly for trailers used near saltwater or operated through winter road conditions. Surface rust looks cosmetic, but rust at stress concentration points (spring eyes, center bolt holes) leads to cracking under normal load.

How to Extend Leaf Spring Life

Staying within the trailer's rated capacity is the single most effective thing you can do to protect your springs. Load distribution also matters; concentrate heavy items over the axle centerline and distribute weight evenly side to side. Off-center loading puts asymmetric stress on the spring pack, wearing one side faster than the other.

Inspect and lubricate the spring leaves and bushings periodically. Dry leaves and worn bushings allow metal-to-metal movement that accelerates wear. Wash off road salt after winter trips, and consider a rust-inhibiting coating if your trailer spends significant time in wet or salty conditions.

When you rent through Neighbors Trailer, every rental automatically includes NT Protect, mandatory coverage at a few dollars per day, providing a financial backstop for unexpected issues. Whether you are renting or owning, a pre-trip inspection of the leaf springs takes less than five minutes and can prevent serious problems down the road. To understand more about suspension system choices and their maintenance demands, visit our guide to slipper spring suspension systems.

Frequently Asked Questions

How often should I inspect my trailer leaf springs?

Inspect springs before each season or every 3,000 miles of towing, whichever comes first. If the trailer is used heavily or hauls near maximum capacity, inspect more frequently. A visual check takes only a few minutes and is part of any responsible pre-trip inspection.

Can a cracked leaf spring be welded?

No. Welding a leaf spring is not a safe repair. The heat from welding alters the temper of the spring steel, creating a weak point. A welded spring will likely re-crack at or near the weld under normal use. Replace cracked springs; do not repair them.

My trailer is level but bounces badly. Are the springs worn out?

Likely yes. Springs that still hold ride height but have lost spring rate provide little resistance to axle movement. A bounce test (push down firmly on the trailer tongue and release) should result in one or two oscillations maximum. Continued bouncing after you release indicates fatigued springs or worn bushings.

Is it safe to tow with a broken leaf spring?

No. A broken spring shifts load distribution, affects axle alignment, and can cause the affected side to bottom out on rough roads. Towing with a broken spring risks additional suspension damage, accelerated tire wear, and loss of steering control. Replace the spring before towing.

How do I know what spring to order as a replacement?

You need the eye-to-eye length, leaf width, leaf count, and the load rating (in pounds per side). This information is sometimes stamped on the spring or available in the trailer's documentation. Match or exceed the original spring's specifications; never substitute a lower-rated spring.
