Cargo trailer lighting is one of those topics that sounds boring until a taillight fails on a highway shoulder at midnight and you find yourself in a roadside emergency you could have prevented in five minutes at the driveway. The right lighting setup keeps you legal, keeps you visible, and keeps the cargo inside reachable when you arrive after dark. This guide covers exterior lighting, interior lighting, the plug systems that tie everything together, and what to look for when you book a cargo trailer rental on the Neighbors Trailer marketplace.

You do not have to be an electrician to understand the basics. Cargo trailer wiring uses standardized color-coded conductors, the same plug shapes are used across most North American trailers, and most failures come from corrosion, broken grounds, or a damaged plug , not from a mystery short.

Exterior Lighting: What the Law Requires

Federal Motor Vehicle Safety Standard 108 requires every cargo trailer to have running lights along the sides, brake lights at the rear, turn signals at the rear, side marker lights, and reflectors. Larger enclosed trailers (over 80 inches wide) add three identification lights on top of the rear and two more on the front, along with clearance lights at the upper corners.

If any of these lights are out, the trailer is not legal to tow on public roads. A pre-trip walk-around with a buddy in the cab is the fastest check: turn on the running lights, then flip the turn signals and tap the brakes. If anything is dim or dead, the issue is almost always a corroded ground at the affected fixture.

LED vs Incandescent: Why It Matters

Older trailers came with incandescent bulbs in stamped steel fixtures. They worked, but they drew a lot of current, dimmed with vibration, and burned out frequently. Modern cargo trailers use sealed LED fixtures that draw a fraction of the current, last decades, and stay sealed against water and dust. If you are choosing between two otherwise equal cargo trailer rentals, picking the one with LEDs means fewer roadside surprises.

Light Type	Lifespan	Current Draw	Cost (Pair)
Incandescent Tail Light	1,000 to 2,000 hours	1.5 amps	$15 to $30
LED Tail Light (Sealed)	50,000 hours	0.4 amps	$25 to $55
Incandescent Marker	1,000 hours	0.5 amps	$8 to $15
LED Marker	50,000 hours	0.05 amps	$12 to $25
LED Interior Strip (Battery)	30,000 hours	0 (own battery)	$25 to $80

The 4-Way vs 7-Way Plug

The plug at the front of the trailer is what carries power and ground from the tow vehicle. Smaller cargo trailers use a flat 4-way plug, which carries running lights, left turn, right turn, and ground. That is enough for trailers without brakes. Heavier cargo trailers use a 7-way round plug, which adds an auxiliary 12-volt power line, an electric brake line, and a backup light line. If you are renting a trailer over 3,000 pounds gross, expect a 7-way plug.

Mismatched plugs are common. If your tow vehicle has a 4-way and the trailer has a 7-way, you need an adapter. Most cargo trailer rental owners include the right adapter, but ask before you book. For a deeper dive on plug shapes and pin functions, see our guide to identifying your trailer's light plug configuration.

Interior Lighting: What Actually Helps

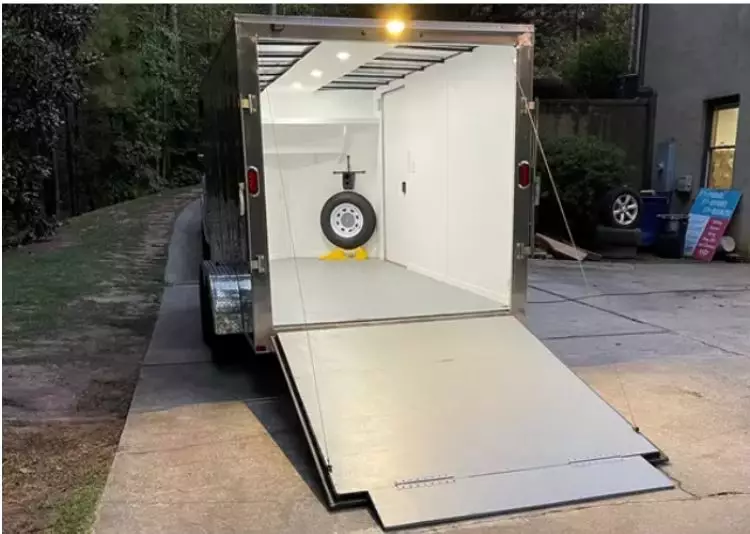

Stock interior lighting in cargo trailers ranges from "single dome bulb that runs off the auxiliary line" to "dual LED strips along the ceiling with a switch by the door." If you load and unload after dark, the second option is dramatically better. Some owners add aftermarket battery-powered LED strips that work whether the trailer is hitched to a vehicle or sitting alone in a driveway.

The chart below shows the relative brightness in lumens of common cargo trailer interior lighting options. Anything above 1,500 lumens is enough for working inside the trailer comfortably at night.

Cargo trailer interior lighting brightness comparison

NeighborsTrailer.com

Troubleshooting Common Lighting Problems

Almost every cargo trailer lighting failure traces back to one of four causes: corroded plug pins, broken ground wires, blown fuses in the tow vehicle, or water intrusion at a fixture. Start with the plug: unhook, look at the pins, and if you see green oxidation, clean it with a brass brush or fine sandpaper. If the plug looks fine, check the white ground wire where it terminates at the trailer frame. A broken ground will give you wildly inconsistent symptoms (turn signals working through the brake light, for example) that disappear the moment the ground is restored.

For specifics on wiring fixes, the cargo trailer wiring guide walks through pin layouts and common patterns. For five-way plugs specifically, see our enclosed trailer 5-way plug wiring reference.

What to Look for in a Rental Listing

Owners who care about lighting will mention LED upgrades, interior dome lights, sealed marker fixtures, or aftermarket battery kits in the listing. Photos that show the trailer's rear plate at night with the tail lights on are a good sign that the owner has thought about this. If the listing is silent on lighting, ask before booking, especially if you plan to load or unload after dark.

Booking Through Neighbors Trailer

The marketplace lets you filter cargo trailer rentals by size, region, and features. Renters must be at least 21, and owners receive their payouts via Stripe within two to three business days of the trailer's return.

Frequently Asked Questions

Can I add my own LED strip lights to a rental?

No. Modifying the trailer's wiring or attaching anything to the body is not allowed. If you need more interior light, bring a battery-powered work light that does not attach to the trailer.

Why are my trailer lights flickering?

Flickering almost always means a poor ground connection. Check the white ground wire at the plug and at the frame attachment point. Tighten any loose terminals and clean any corrosion.

Do I need an adapter for a 4-way to 7-way conversion?

Yes, if your tow vehicle has the smaller flat 4-way and the trailer has the round 7-way (or vice versa), you need a passive adapter. Most cargo trailer owners include the right adapter; confirm before booking.

How do I know if my trailer's brake lights are working?

Have a second person stand behind the trailer while you press the brake pedal. If only one side lights up or both stay dark, the issue is almost certainly a bad ground or a broken plug pin.

The Bottom Line

A cargo trailer with bright, sealed LED lighting and a clean 7-way plug is dramatically safer and easier to use than one running 30-year-old incandescent fixtures. Walk around before every haul, check the plug, and confirm interior lighting if you plan to unload at night. Browse Neighbors Trailer for cargo trailer rentals near you and book directly with the owner.
