How To Identify Your Trailers' Light Plug Configuration

Neighbors Trailer

May 12, 2025
1272
5 min read

Trailer light plug configurations look simple until you arrive at pickup with the wrong connector. The single most common reason a rental trailer "does not work" is a mismatch between the truck plug and the trailer plug. Identifying the right configuration ahead of time takes 60 seconds once you know what to look for. This guide walks through how to identify your trailer's light plug configuration in 2026, what each pin does, and what to do when your truck has a different connector than the trailer.

The Four Most Common Trailer Plug Types

Most trailer plugs in North America are one of four shapes: 4-flat (small rectangular plug with four pins), 5-flat (same shape with five pins), 7-blade (round plug with seven flat blades), or 6-round (round plug with six pins). Each carries a specific set of light and brake signals. The vast majority of consumer trailers use 4-flat or 7-blade.

What Each Pin Actually Does

On a 4-flat: white (ground), brown (running lights), yellow (left turn / brake), green (right turn / brake). On a 7-blade: add blue (electric brakes), red (battery charge), and black (auxiliary power). The 7-blade plug is required for any trailer with electric brakes or interior lighting.

How to Spot a Brake Wire

A blue wire in the harness or a labeled "B" pin on the connector confirms the trailer has electric brakes. Without that wire, your trailer is surge-brake or no-brake; check the GVWR to know which.

Identify the Plug Visually

Look at the trailer end of the wiring pigtail. Count the pins, note the shape (flat versus round), and check for the plastic boot color. Photograph the plug from straight on so you can compare against your truck plug at pickup.

Identify the Truck Plug

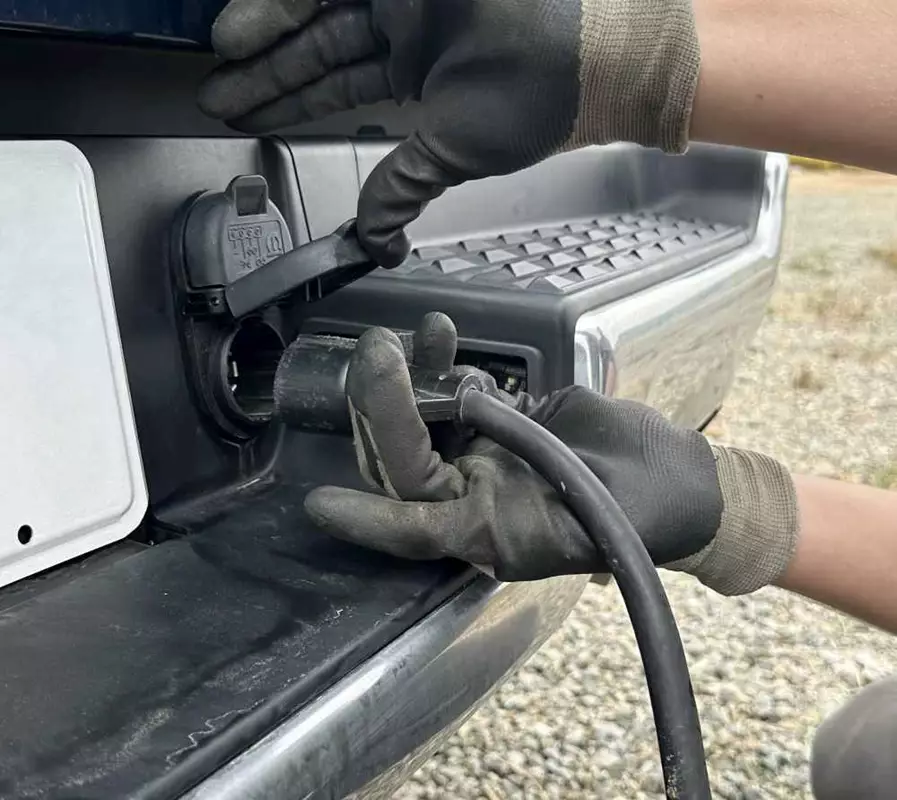

Truck plugs usually live behind a snap-on cap below or above the hitch receiver. Pop the cap, count the pins, and compare. Most modern half-ton and larger trucks have a built-in 7-blade with a 4-flat adapter clipped inside the cap; older or smaller vehicles often have only a 4-flat.

When They Do Not Match

Adapters solve almost every mismatch. A 4-flat to 7-blade adapter ($10 to $20) lets a 4-flat truck plug into a 7-blade trailer for lighting only (not brakes). A 7-blade to 4-flat adapter lets a 7-blade truck plug into a 4-flat trailer. Carry both in your truck if you tow different trailers.

Test Every Function Before Leaving the Lot

With the trailer plugged in, have a helper confirm: running lights on, left turn flashes left rear, right turn flashes right rear, brake pedal lights both rear, and (for 7-blade) brake controller responds. If any function fails, troubleshoot before you hit the road.

Troubleshoot Common Light Issues

Most light problems are corrosion or a blown trailer fuse in the truck. A spray of dielectric grease on the pins, a wiggle of the connector, and a check of the truck's trailer fuse fixes 80 percent of failures. Carry spare fuses sized for your truck.

When to Upgrade Your Truck Plug

If you tow regularly with trailers that use brakes or charge accessories, install a 7-blade socket if your truck does not have one. The upgrade is plug-and-play on most trucks with a tow package and costs under $50 in parts.

Trailer Plug Configurations at a Glance

Plug Type	Pins	Carries	Best For
4-flat	4	Running, left, right, ground	Small utility, motorcycle, light cargo
5-flat	5	4-flat plus surge brake disable	Boat trailers with surge brakes
6-round	6	4-flat plus brake, aux power	Older heavy trailers, RVs
7-blade	7	4-flat plus brake, aux, battery	Most modern cargo, dump, horse, car hauler
Trailer brake + no light power	Varies	Brakes only	Specialty configurations

Share of Trailer Plug Configurations on Rental Trailers in 2026

Bar chart of trailer plug configuration share on rental trailers

NeighborsTrailer.com

FAQ

Will a 4-flat to 7-blade adapter run my trailer brakes?

No. Adapters carry lights only. To use electric brakes you need a 7-blade truck plug wired to a brake controller.

What if my plug looks corroded?

Clean both ends with electrical contact cleaner and apply dielectric grease before plugging in. Corrosion is the most common cause of intermittent lights.

Can I tow a 7-blade trailer with just a 4-flat truck?

You can tow legally for lights only with an adapter, but you cannot use the trailer's electric brakes.

How do I test the plug at pickup?

Plug in, run through running, left, right, brake. A $15 test light tool from any auto parts store also works and reads each pin directly.

Plug, Test, Drive

Identifying your trailer's light plug takes a minute and saves an entire trip's worth of headaches. Keep an adapter set in your truck, learn the four common configurations, and run a light test before every haul. Neighbors Trailer makes it easy to confirm plug type before booking so the wiring matches when you arrive.

Content updated May 2026
